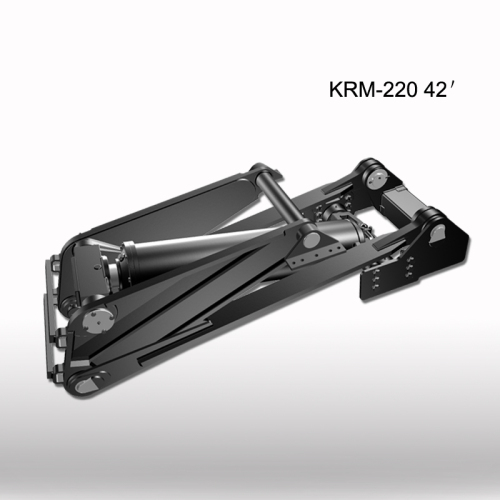

KRM220 42' Series Hydraulic Cylinder

Item No.: SJ0008
KRM series hydraulic cylinder can be widely used in various types of dump truck.KRM hydraulic cylinder lifting system's structure is mature and stable.
$0.00
/ Pieces
Description Review
Description

Hoist Machanism Dimensions and Weight

Hoist Cylinder KRM 220 42’
Length(mm) Width(mm) Height(mm) Min.Closed Length(mm) Weight(kg)
1870 620 500 1226 581



Hoist Cylinder and Pump Conbination Specificaion

Working Pressure(MPa)/kgf/cm²) 9.8/100 Min.Close Distance(mm) 1197
Inner Diameter(mm) 220 Piston Rod Diameter(mm) 100
Stroke(mm) 865 Max. Pressure(MPa)/kgf/cm²) 20.6/210
Gear Pump KP-1505A

Weight(kg)

38



Hoist Mounting and Maximum Lifting Capacity

Recommen ded Truck G.W.(kg)

Body Length

(mm)

Rear Overhang Length

(mm)

Distance between Load Center and Hinge(mm) Distance between trunnion and Hinge(mm)

Rated Lifting Capacity

(kg)

Designed Max.Lifting Capacity(kg)

35000 6000 1000 2000 2630 25000-45000 75900
