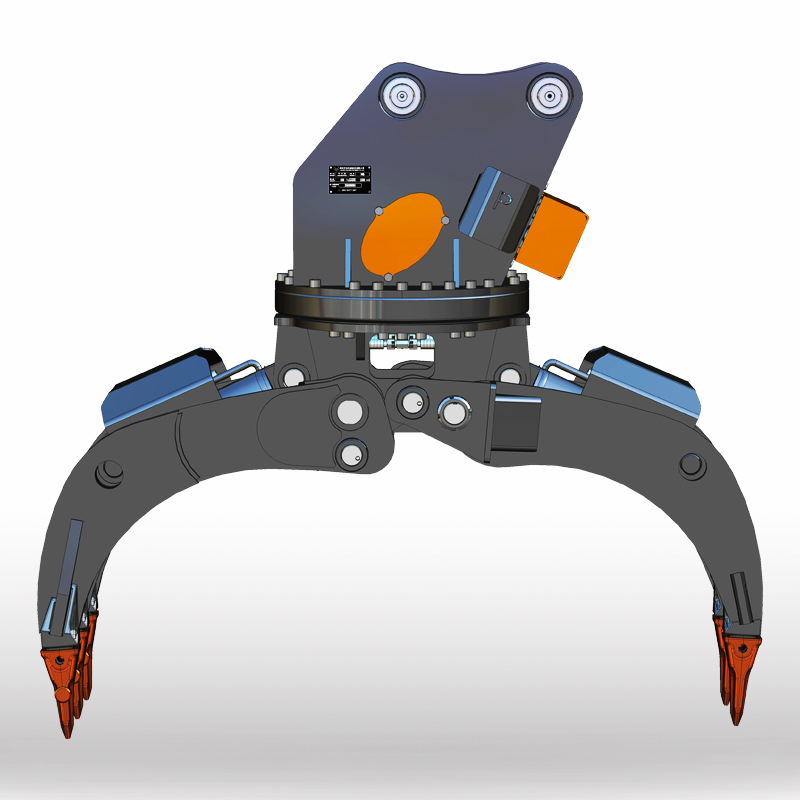

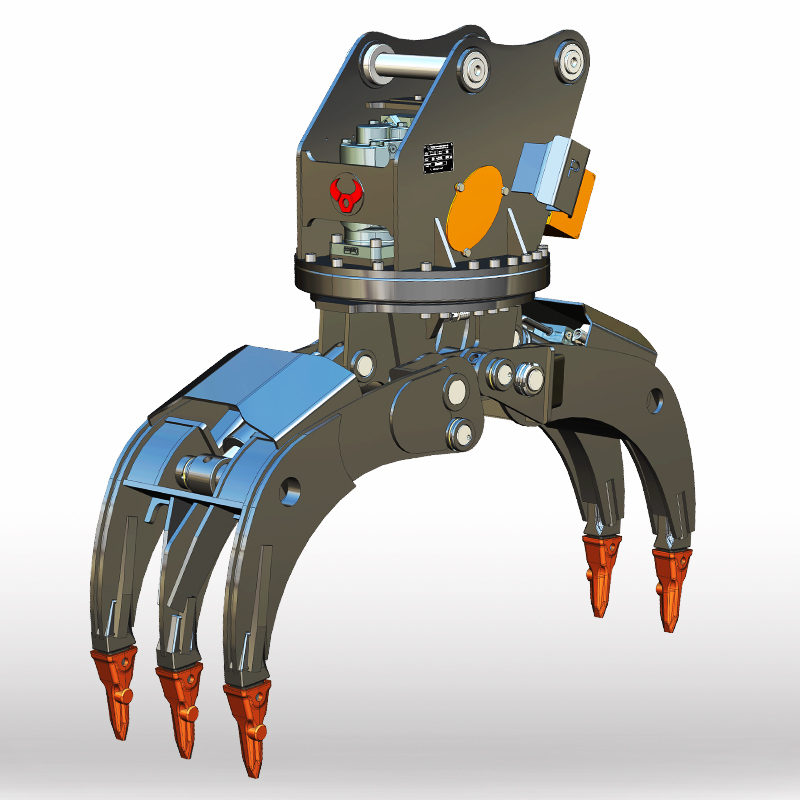

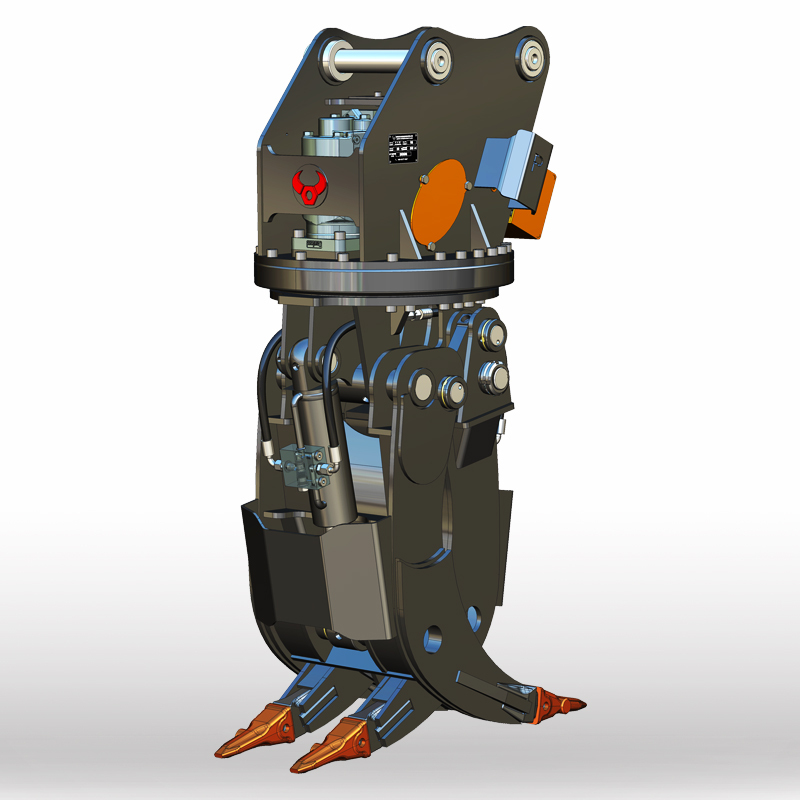

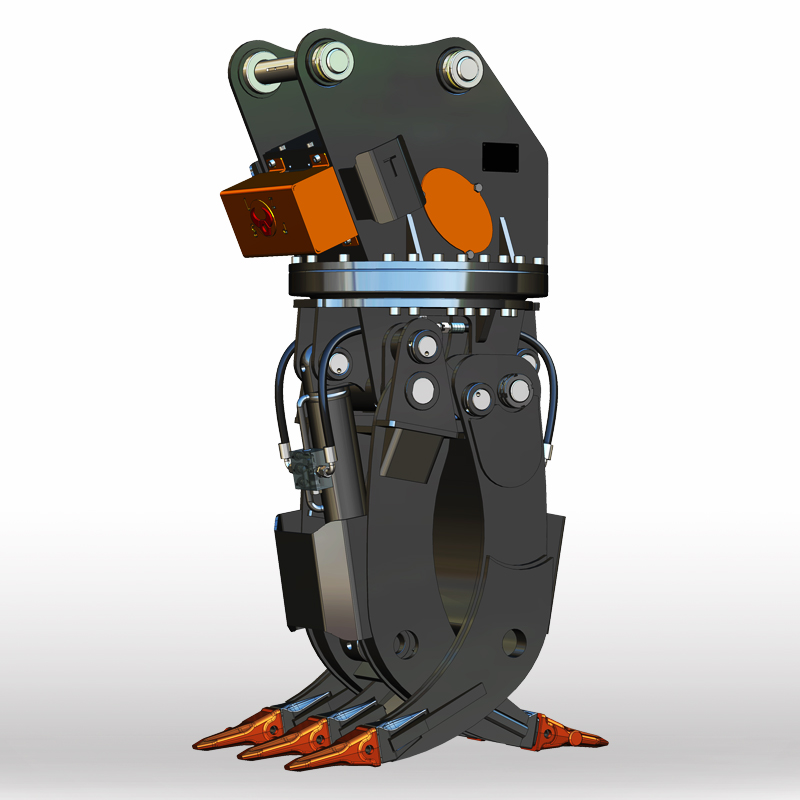

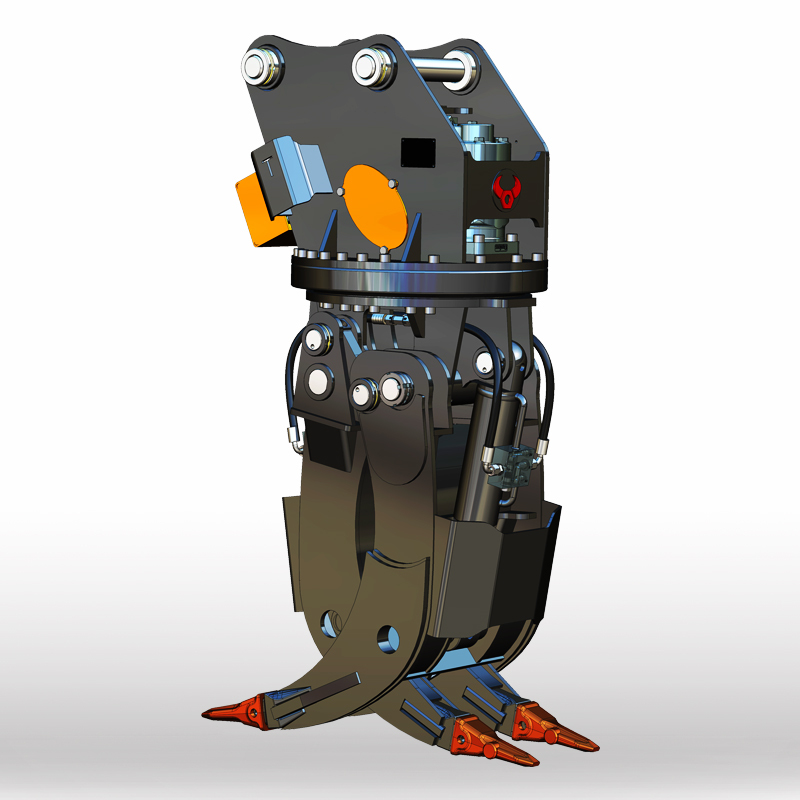

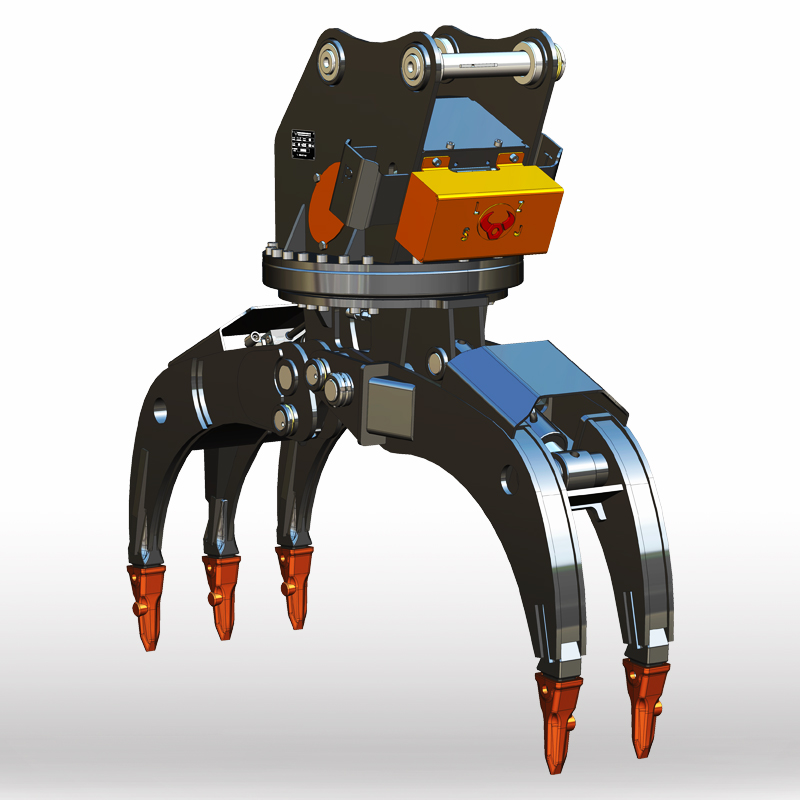

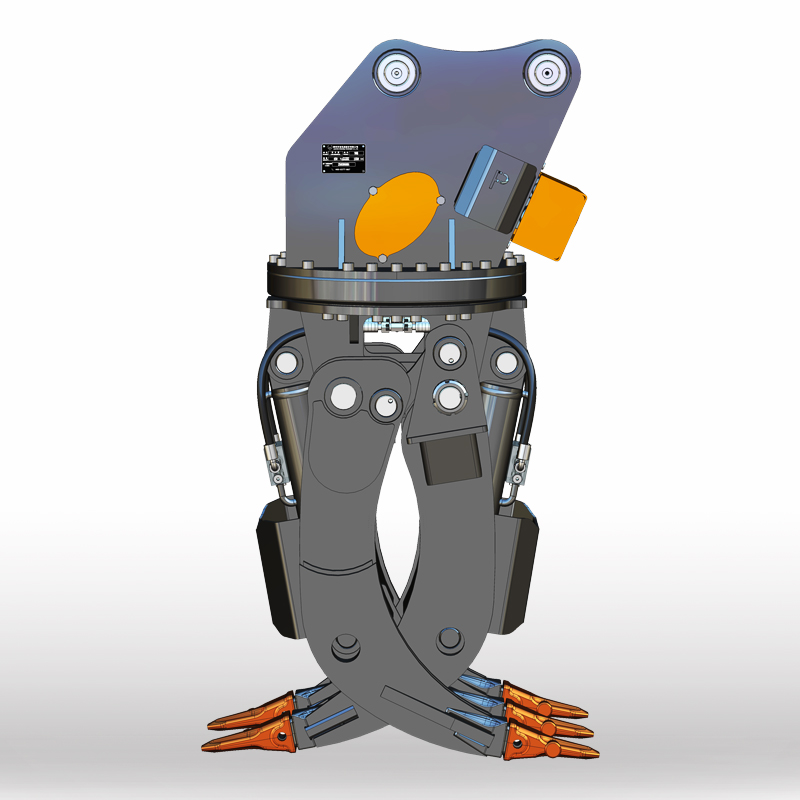

Name: Log Grapple SJ-SG5C04G
Brand: Automobile tail plate, forklift equipment, dump truck lifting hydraulic lifting system, hydraulic cylinder manufacturers
SKU: 00144
Availability: InStock
Rating: 5 (1 reviews)

Home > Log Grapple

Description Review

Description

Main place of use
It is suitable for large port dock lumber loading and unloading, forest yard lumber loading and unloading, pipe, cylinder and other objects grasping and unloading, wood processing factories and other construction sites, can be single or multiple grasping, with tower crane, portal crane, excavator and other cranes to use, holding structure has higher work efficiency and operation experience.

Product features
Using alloy wear-resistant steel, with light texture, high strength, high wear resistance; The control mode adopts electric control handle operating system, equipped with imported Eaton solenoid valve, can control the rotation speed, can rotate clockwise, counterclockwise 360 degrees, the operation is smooth; It can be installed and used with 2T-30T excavator, used for loading and unloading wood, sugarcane, other materials, etc., the work efficiency is greatly improved, greatly saving the cost of manual loading, unloading and handling.

Description

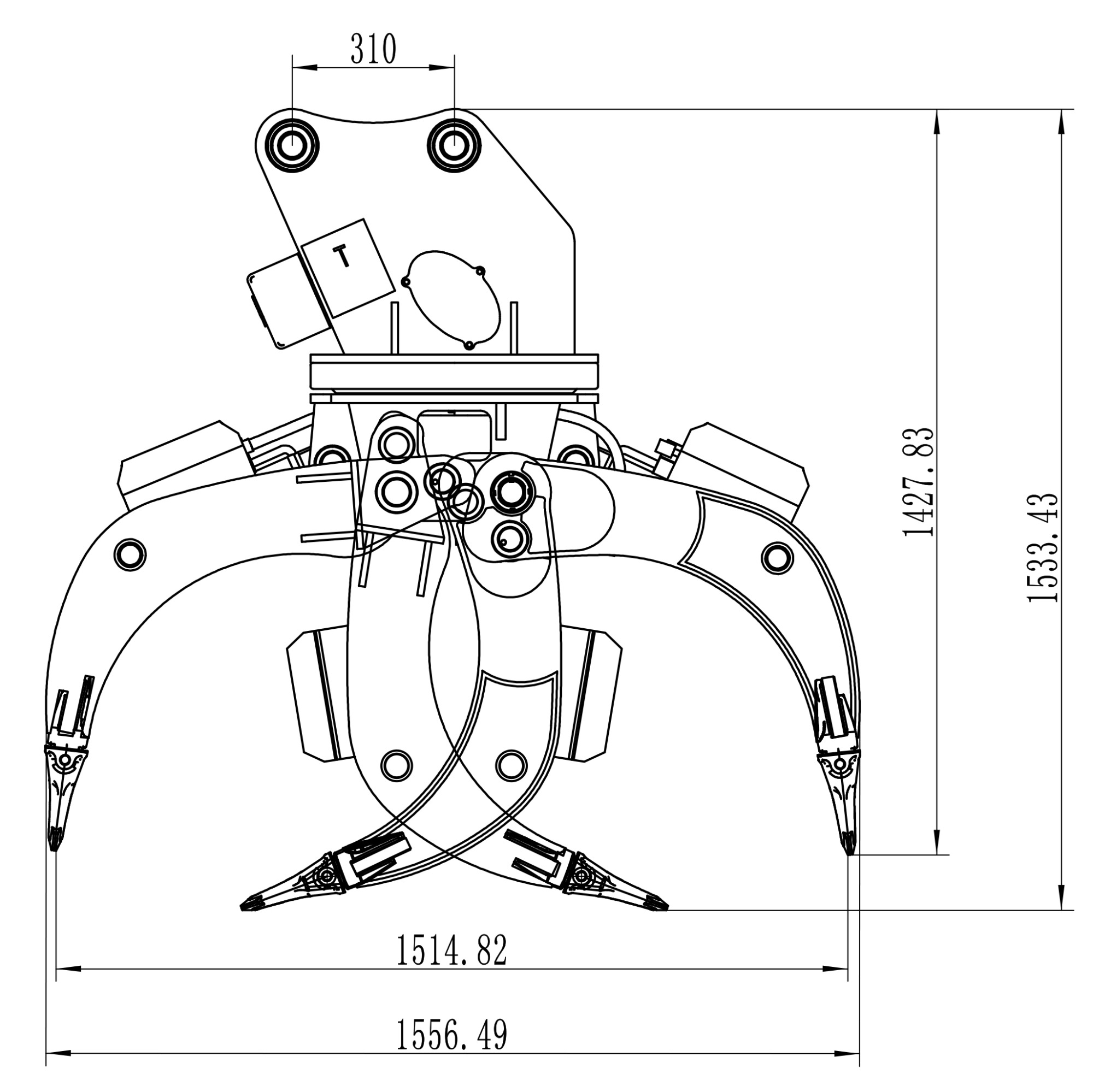

Structural Component	Name	Specification	Structural Component	Name	Specification
Whole machine	Jig form	Double Cylinders / Holding Claw / Double Connecting rod	Rotary Support	Rotary Way	External meshing vertical rotaion
	Primary structure components material	High strength wear-resistant plates	Rotary Support	Modulus / Raceway diameter	M5 / 463
	Optional Electronic	Electronic	Rotary Motor	Rotary type	Cycloid type motors
	Shut Height (mm)	1535	Rotary Motor	Pressure (Mpa)	14
	Open height (mm)	1425	Hydraulic cylinder	Rod / Cylinder diameter (mm)	50 / 80

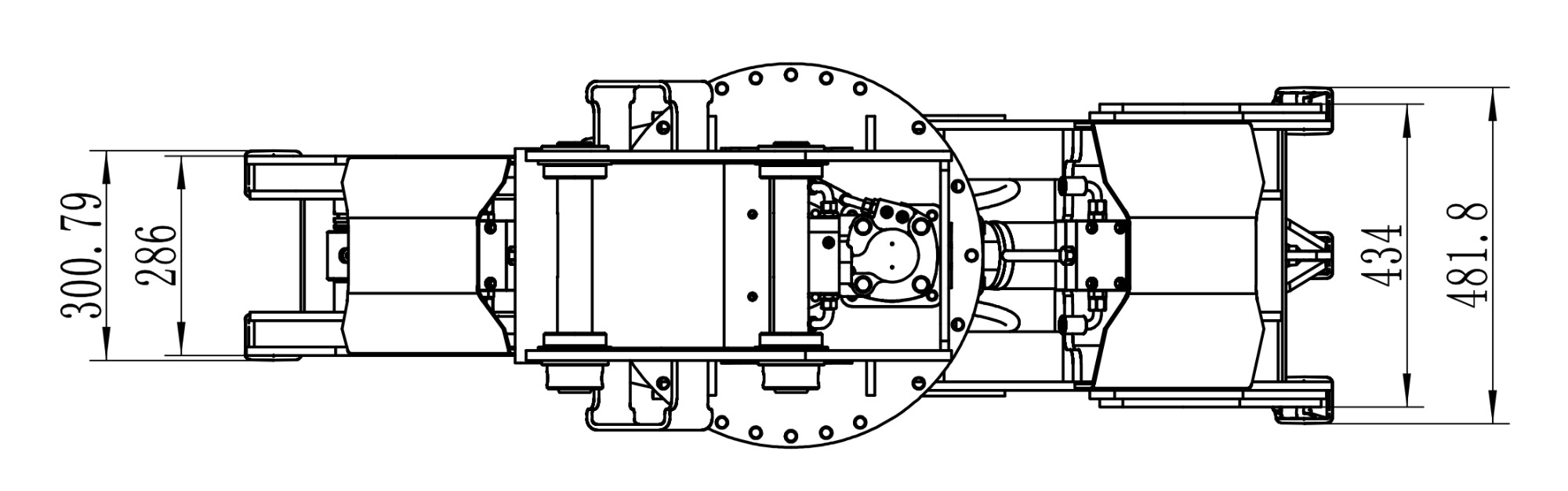

	Inside / outside clamp width (mm)	286 / 435	Hydraulic cylinder	Pressure (Mpa)	21.5
	The biggest opening (mm)	1500	Rotating support	Open size (mm)	220
	Minmum arms round (mm)	φ 95		Shaft diameter (mm)	50 / 55
	(Medium / High configuration) Weight (kg)	570		Centre distance (mm)	310
	Adaptation model (T)	6~9		Centre distance (mm)	310
